Core technology:Power Consumption Analysis

Heating method	Beeco’s heating element	Electric heating panel	LPG	Kerosene boiler	City gas
Calorific value	500 Kcal/Kw	860 Kcal/Kw	12,000 Kcal/Kg	860 Kcal/l	860 kcal/N㎥
Energy consumption/m onth	350W / 3.3㎡ (80% installation)	580W / 3.3㎡	120 / Kg	1641	130 l/N㎥
Sales price (won)	100	100	1932	1542	896

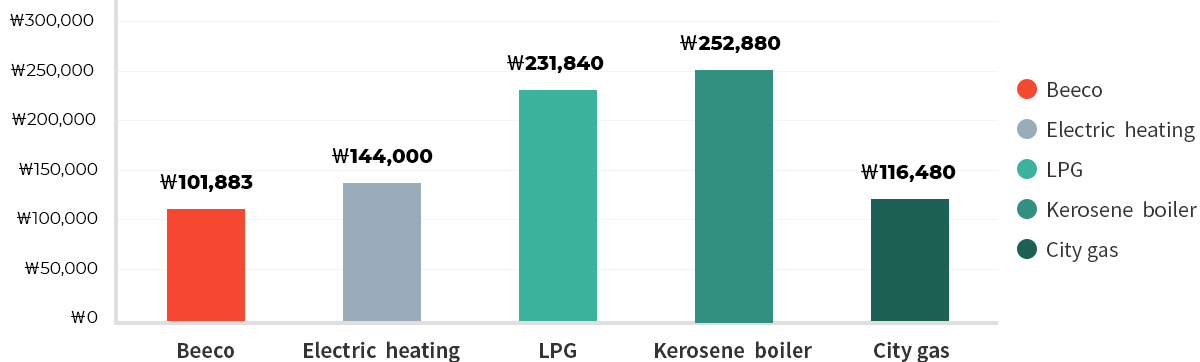

Utility bill (won)	101,883	144,000	231,840	252,880	116,480
1. The price of each energy may change when a factor occurs to change it.Electricity rates are based on general electricity (Gab) and low-voltage electricity in winter (November to February), and progressive tax is not applied. 2. City gas (LNG) rates are based on the heating rates for homes in Seoul, and rates may vary depending on the region. 3. The above rates are as of February 2012 (based on heating a space of 3.3㎡ for 30 days, 8 hours a day) 4. Energy consumption may vary depending on the insulation at the site of installation in different heating methods and environmental conditions.
